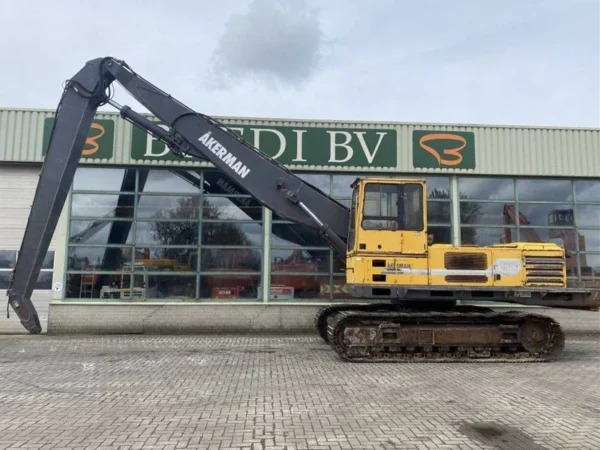

Volvo EC420 Akerman Excavator Electrical & Hydraulic Schematic Manual PDF

Description

Electrical and hydraulic faults can be difficult to diagnose without accurate schematic diagrams. This VOLVO EC420 Akerman Excavator Electrical & Hydraulic Schematic Manual is a digital technical reference created for technicians, mechanics, maintenance personnel, and equipment owners who need detailed wiring diagrams and hydraulic circuit information for troubleshooting, servicing, and repairs. The EC420 Akerman is a crawler excavator originally produced under the Åkerman EC series.

The manual includes complete electrical wiring diagrams, hydraulic circuit schematics, connector identification, cable routing, component locations, and system layouts. These diagrams help users isolate faults more efficiently, verify repairs, and reduce unnecessary downtime by providing a clear understanding of the machine’s electrical and hydraulic systems.

What’s Included

• General Information
• Electrical System Overview
• Electrical Symbols and Component Identification
• Complete Wiring Diagrams
• Cable Harness Routing
• Connectors and Terminal Identification
• Battery and Power Distribution
• Starting and Charging System
• Fuses and Relays
• Instrument Panel and Monitoring System
• Sensors and Switches
• Electronic Control Components
• Lighting System
• Hydraulic System Overview
• Hydraulic Circuit Diagrams
• Working Hydraulics
• Servo Hydraulic System
• Hydraulic Pumps and Valves
• Hydraulic Cylinders and Motors
• Hydraulic Components and Connections
• Attachment Hydraulic Circuits
• Electrical & Hydraulic Troubleshooting Reference
• Technical Diagrams and Illustrations

Format & Access

• Digital PDF format
• Fully searchable content
• High-resolution schematic diagrams
• Zoom-enabled for detailed viewing
• Printable pages
• Compatible with PC, tablet, and mobile devices

Delivery Information

• Delivered via email after purchase
• Instant PDF Delivery
• No physical item will be shipped
